Self-powered switches

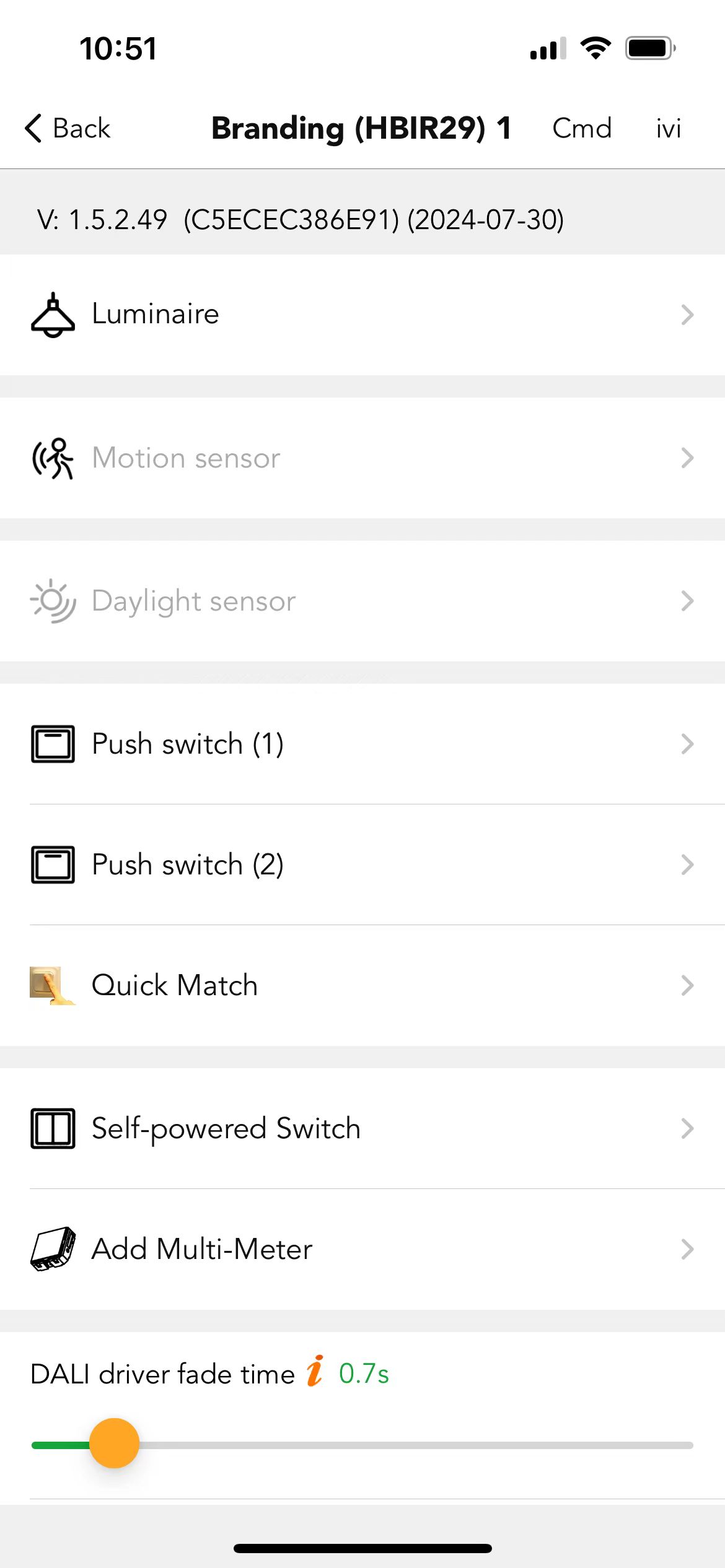

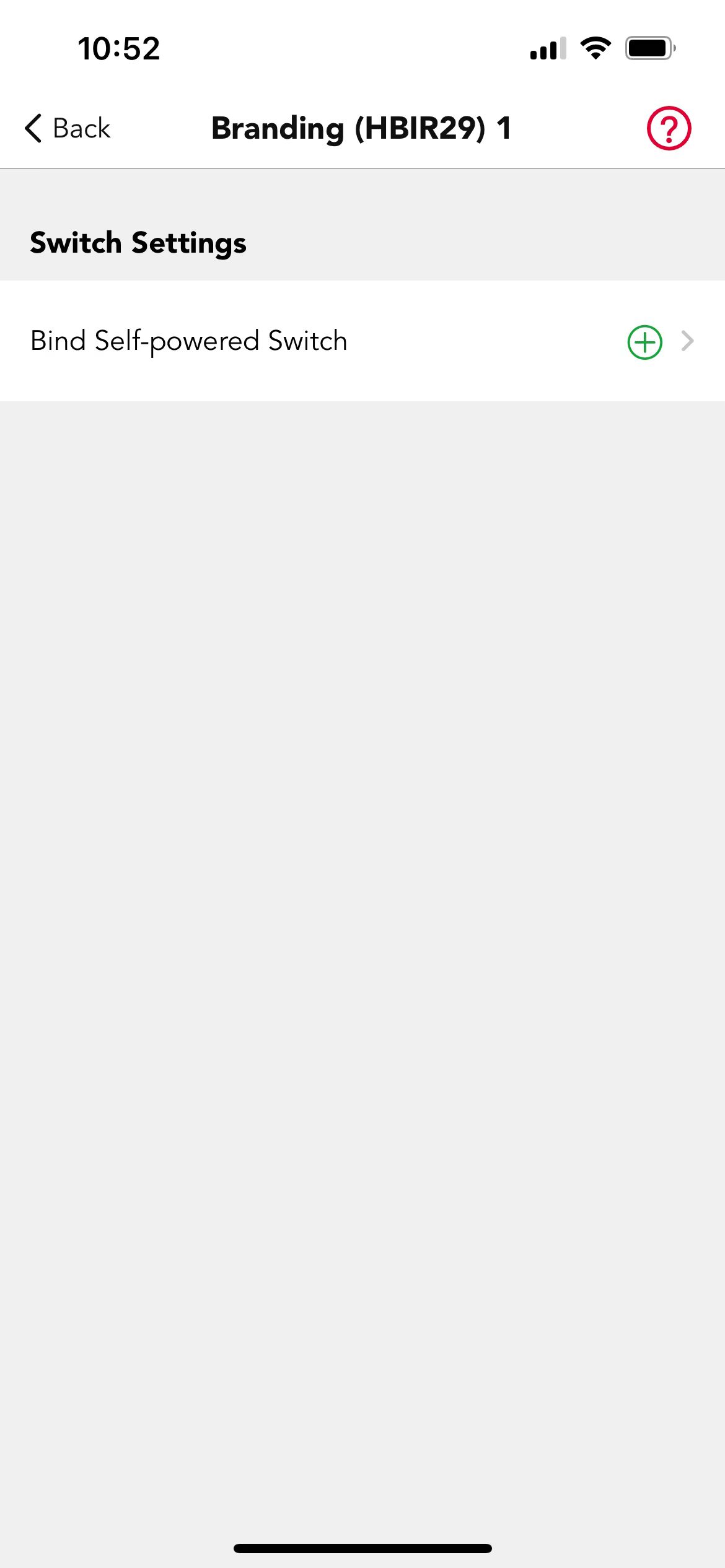

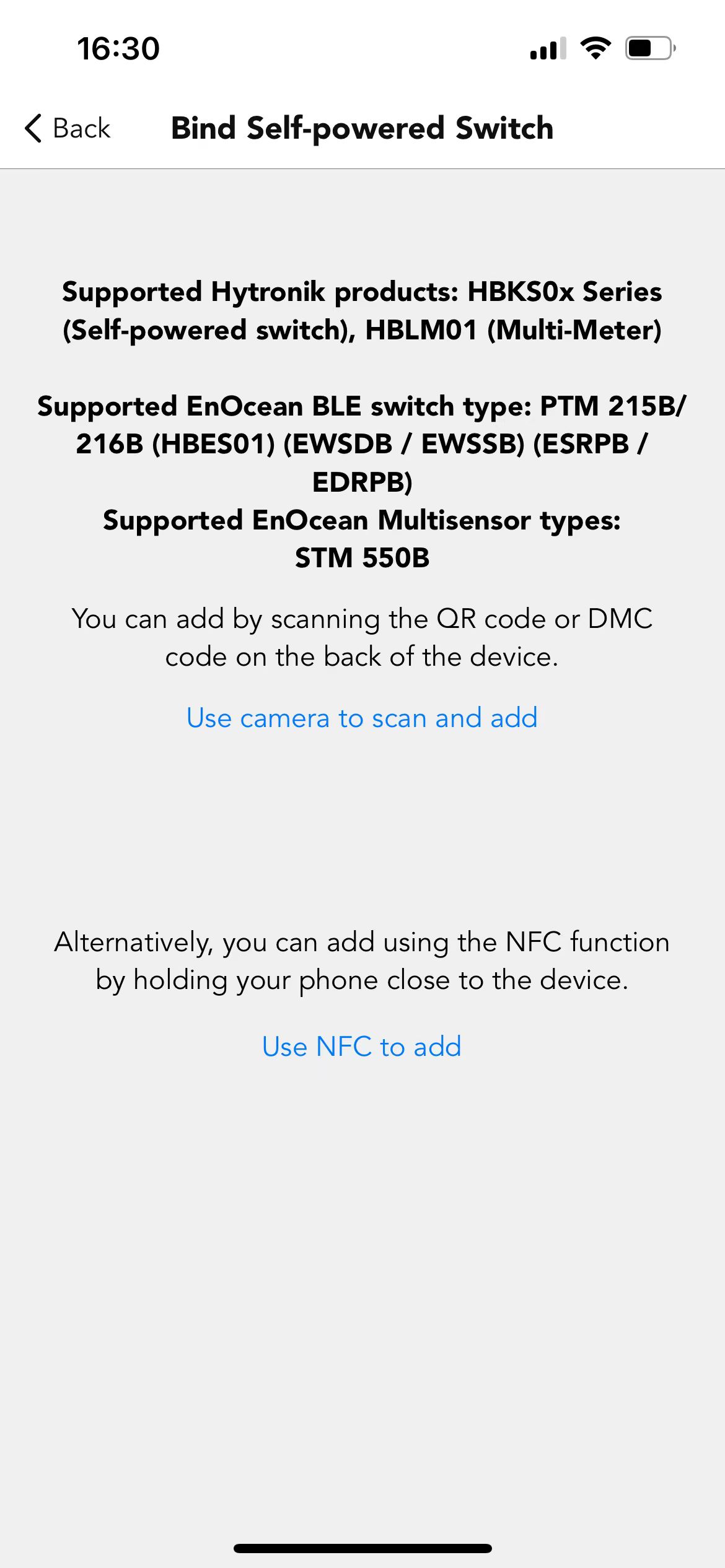

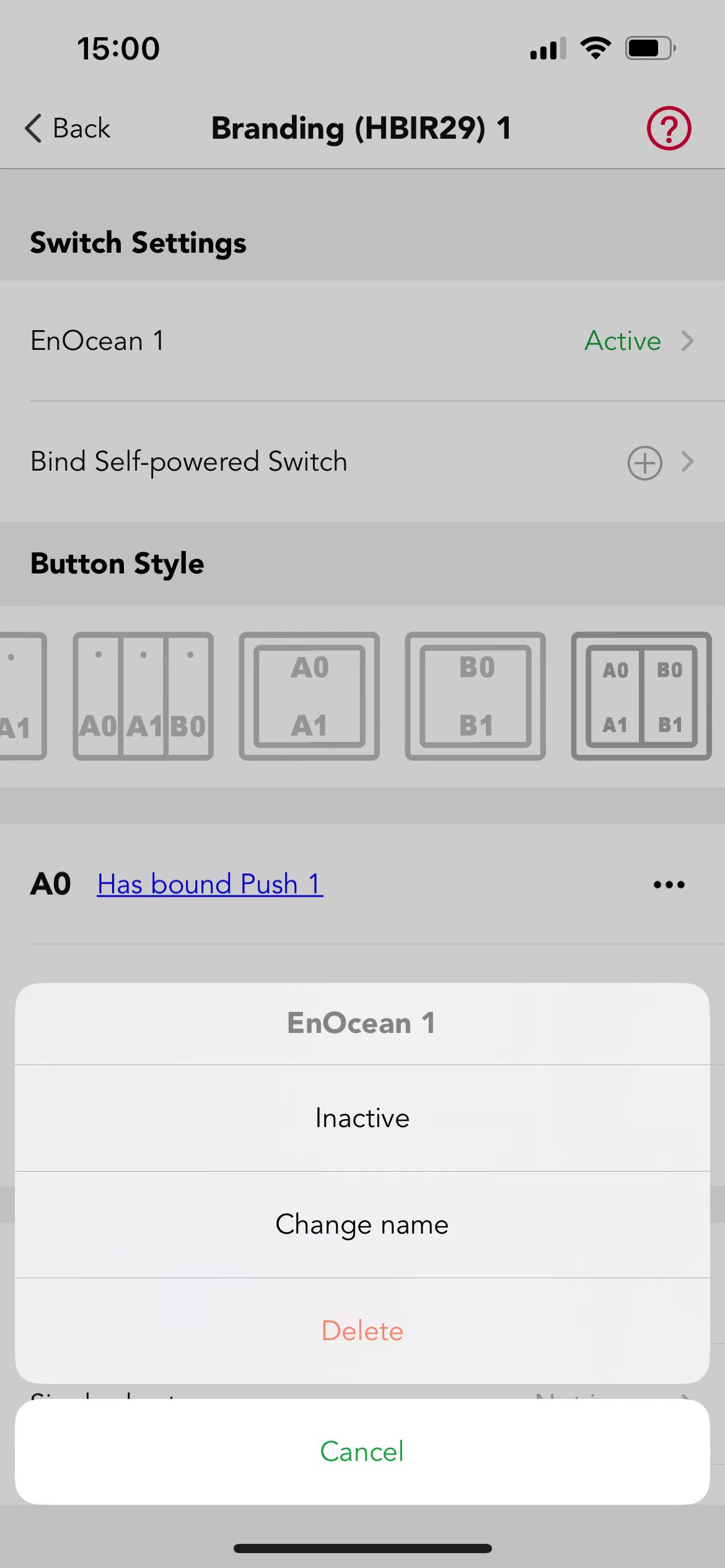

Users can bind a self-powered switch as follows.First we should choose a device like Brand(HBIR29)1,then click the "Self-powered Switch" in the device settings page,then click to bind a self-powered switch and configure. Users can use camera to scan the QR-code on the self-powered switch or use the NFC function on the phone to bind the self-powered switch. Users can change the name of self-powered switch and delete it or inactive it.

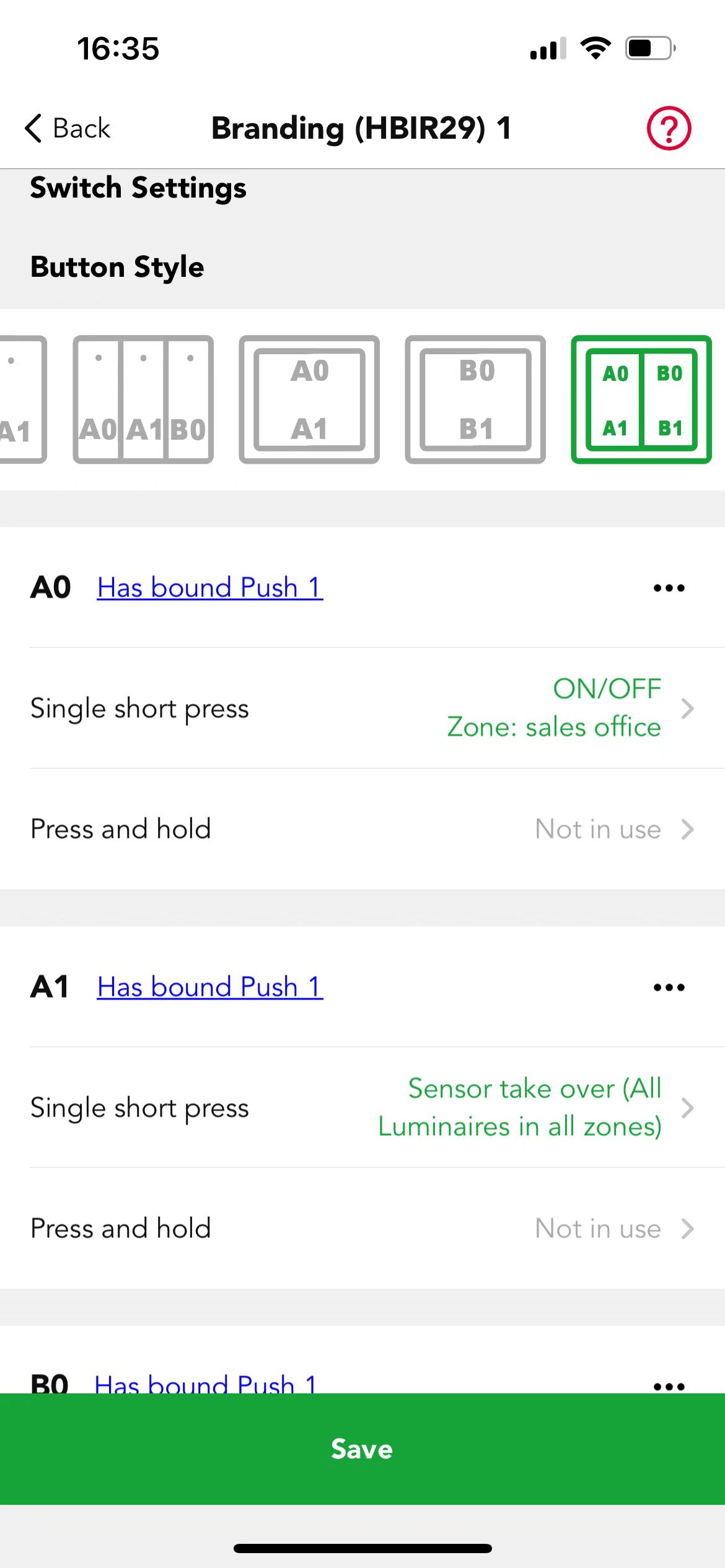

Users can configure the push switch function by click "Has bound push 1",detail function configuration can refer to the push switches section. User needs to be aware that self-powered switch needs to bind push1 or push2 or push 3 before configuring the push switch. Like Branding (HBIR29) 1, A0 bind a push switch 1 to control sales office, A1 bind a push switch 2 to control all luminaires in all zones and so on.

※ Up to four self-powered switches can be connected to one device at the same time.

Example: combine push switches and self-powered switches into real application.
The push switches of warehouse are only support to turn on/off the luminaires, it is very inconvenient and very energy consumption for users. So, user would like to upgrade the lighting system to wireless control and energy saving without re-layout all the cables (the original cable in the push switches is without "L" cables). Normally, what user need to do is change the original push switches to the Koolmesh app enable push switches from Hytronik if the original cables with "L". But under user’s situation, there is without "L" cables in the push switches, then user can use a self-powered switch to bind the push switches to achieve energy saving. Then all users need to do is purchase self-powered switches and set all the parameters. How to bind a self-powered switch and setting push switches function please refer to self-powered switches section. Then users can upgrade the original lighting system to wireless control via self-powered switches.

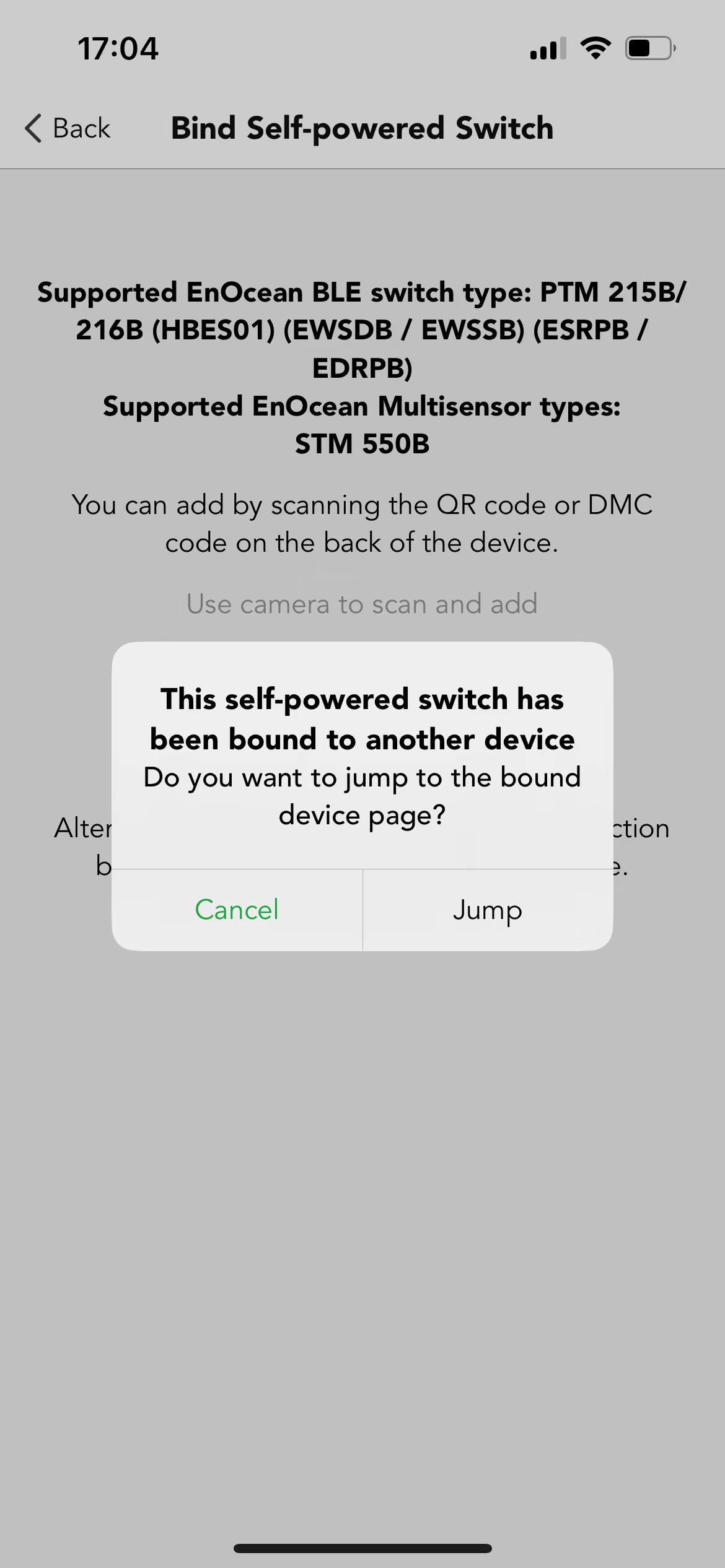

※ If a self-powered switch has been bound with a device before, then users need to unbind or delete it before bind to another device, otherwise it may fail to bind with the new device. In our app, if a self-powered switch is bond with a device, then there will be a notice which will remind user that it has been bound to another device. Users need to delete the original device that bind with the self-powered switch first.
